    KTY1-350M WHOLE BRIDGE AUTOMATIC GRINDING AND CUTTING MACHINE

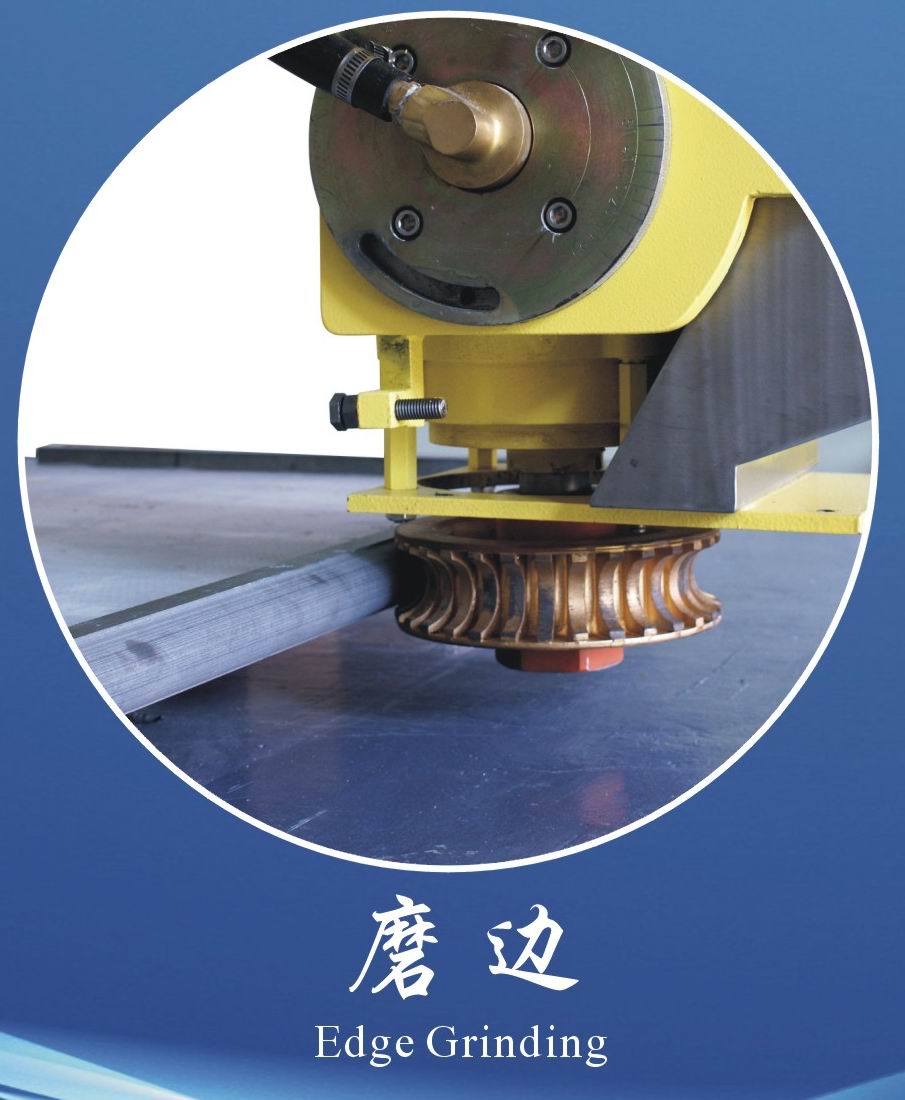

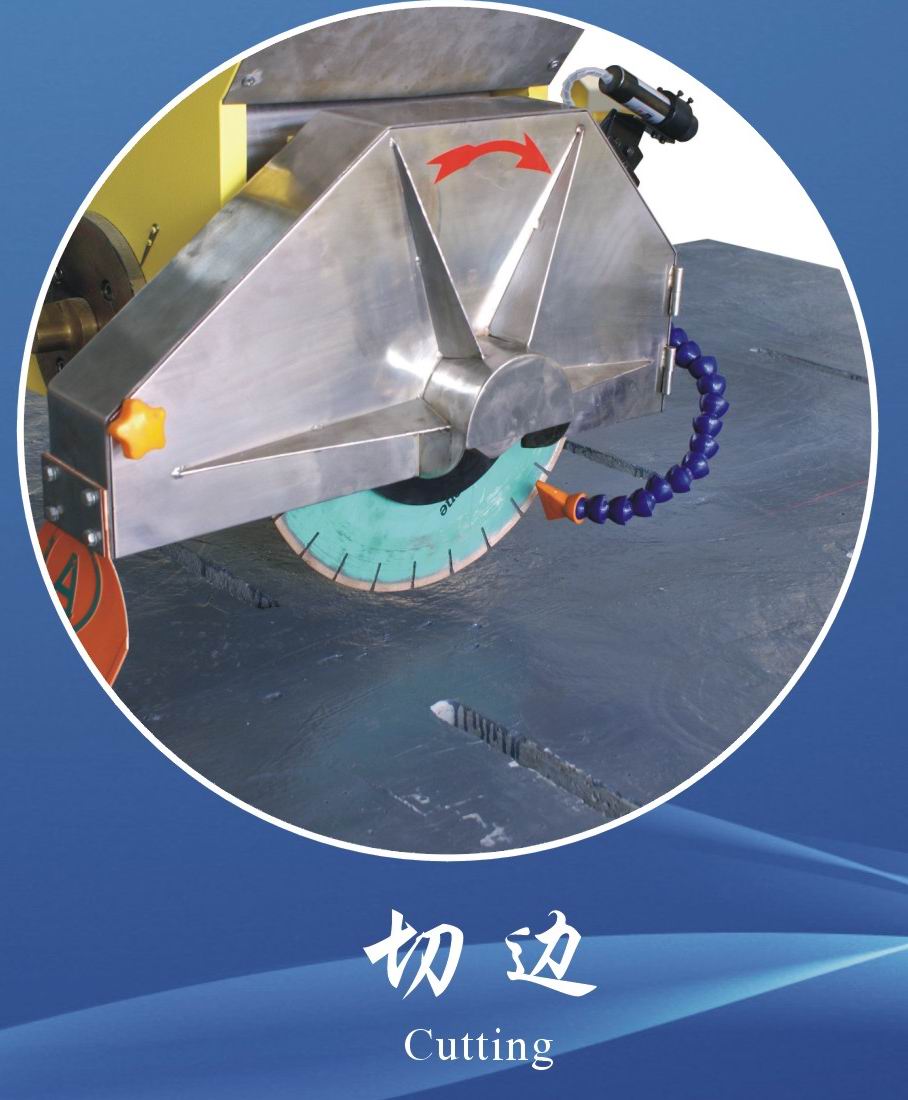

       It’s mainly used for slab cutting, edge grinding,edge chamfering and holes drilling. For its one-piece structure, it is small in size and has advantages such as convenient to transport and install, easy to operate.


     Technical Specifications










    Maximum Diameter of Blade



    φ350-400mm





    Grinding Wheel Diameter



    φ150-250mm





    Drill Bit Diameter



    φ10-150mm





    Maximum Processing Size



    3200 x 2000mm





    Maximum Up-Dowm Travel of Cutter



    250mm





    Power of Main Motor



    11kW





    Cutting Thickness



    0-80mm





    Rotation of the Cutter



    0、90°





    Rake Angle of the Cutter



    0-90°





    Machine Dimensions(L×B×H)



    5600x2950x2250mm





    Gross Weight



    5000kgs
